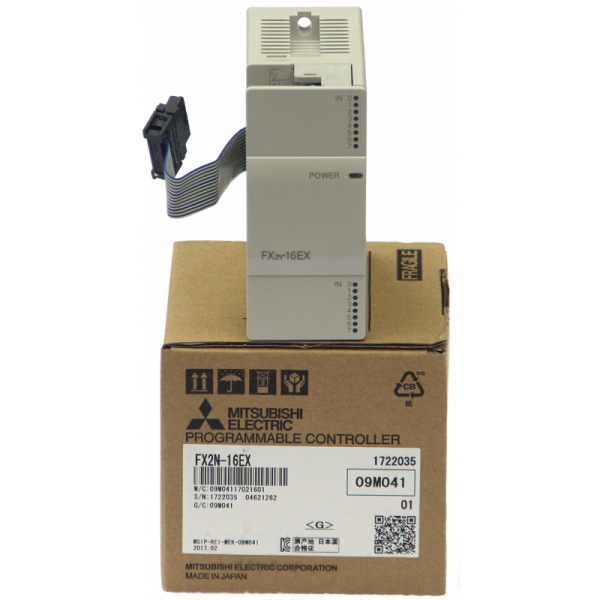

Mitsubishi FX2N-16EX
FX2N-16EX
Manufacturer : Mitsubishi Electric
Application sequencer : FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC FX2NC - CNV - IF is required for connection to FX1NC and FX2NC. To connect to FX3GC, FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required.
mass : 0.3 kg
Rated voltage : Internal power supply from the sequencer
Number of input points : 16 points
Input connection shape : Vertical terminal block (M3 screw)
Input format : sink
Input signal voltage : DC 24 V + 10%
Input impedance : 4.3 kO
Input signal current : 5 mA / 24 VDC
Input ON sensitivity current : 3.5 mA or more
Input OFF sensitivity current : 1.5 mA or less
Input response time : About 10 ms
Input signal format : No-voltage contact input NPN or open collector transistor
Input circuit insulation : Photocoupler insulation
Input operation display : LED on the panel when input is ON
Application sequencer : FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC FX2NC - CNV - IF is required for connection to FX1NC and FX2NC. To connect to FX3GC, FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required.
mass : 0.3 kg
Rated voltage : Internal power supply from the sequencer
Number of input points : 16 points
Input connection shape : Vertical terminal block (M3 screw)
Input format : sink
Input signal voltage : DC 24 V + 10%
Input impedance : 4.3 kO
Input signal current : 5 mA / 24 VDC
Input ON sensitivity current : 3.5 mA or more
Input OFF sensitivity current : 1.5 mA or less
Input response time : About 10 ms
Input signal format : No-voltage contact input NPN or open collector transistor
Input circuit insulation : Photocoupler insulation
Input operation display : LED on the panel when input is ON
** اين محصول نو و در بسته بندي كارخانه ميتسوبيشي ميباشد.
