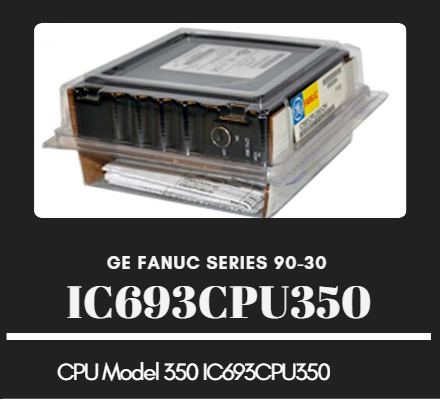

GE FANUC IC693CPU350
GE Series 90-30
مدل : IC693CPU350
Technical Information
CPU350 Catalog Number IC693CPU350
CPU Type
Single slot CPU module
Total Baseplates per System
8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply
670 milliamps from +5 VDC supply
Processor Speed
25 MegaHertz
Processor Type
80386EX
Operating Temperature
0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate
0.22 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum)
32K Bytes (not configurable)
Discrete Input Points - %I
2,048
Discrete Output Points - %Q
2,048
Discrete Global Memory - %G
1,280 bits
Internal Coils - %M
4,096 bits
Output (Temporary) Coils - %T
256 bits
System Status References - %S
128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R
9,999 words
Analog Inputs - %AI
2,048 words
Analog Outputs - %AQ
512 words
System Registers (for reference table viewing only; cannot be referenced in user logic program)
28 words (%SR)
Timers/Counters
>2,000
Shift Registers
Yes
Built-in Serial Port
1 (uses connector on PLC power supply). Supports SNP/SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave protocol support; PCM module for RTU master support
Communications
LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules
Override
Yes
Battery Backed Clock
Yes
Interrupts
Supports the periodic subroutine feature
Type of Memory Storage
RAM and Flash
PCM/CCM Compatibility
Yes
Floating Point Math Support
Yes. Firmware-based in firmware releases 9.0 and later
